Garaventa Elvoron Home Elevator

The Garaventa Elvoron Home Elevator combines comfort, reliability, and refined design to bring effortless travel to every level of your home. The Elvoron glides smoothly and operates quietly, creating a seamless experience you can count on day after day. Choose from a wide range of cab colors, finishes, and materials to match your home’s décor and budget. Instead of traditional accordion gates or swinging doors, Elvoron’s premium 3-speed sliding doors add a touch of modern luxury, which enhances safety, style, and convenience.

The Elvoron is available in two configurations:

• Elvoron HR (hydraulic unit)
  Features a compact drive cabinet, quiet submersed 3hp hydraulic pump motor, manual lowering valve that allows hydraulic fluid to drain from cylinder in case of power outage.
• Elvoron MR (in-line unit)
  In-line 2hp motor located at top of hoistway negating the need for a separate machine room, no hydraulic fluid, controller box with backup battery (UPS) can be mounted on any wall adjacent to hoistway or remotely up to 50 ft away.

Download Brochure

Features

• Machine roomless option: Elvoron MR model utilizes an in-line drive system mounted within the hoistway, eliminating the need for a separate machine room.
• Compact drive cabinet: Controller and hydraulic pump unit can be located adjacent to the hoistway or in a remote location.
• Accessible service panel: For machine roomless Elvoron MR systems with controller in the hoistway, a service panel can be located inside or outside the hoistway for easier access.
• Standard Finishes: Melamine panels or design-it-yourself MDF cab walls. Standard gates include three clear acrylic vision panels.
• Multiple Safety Features: Battery operated (UPS) emergency lowering (hydraulic unit), battery-backup lighting, door operators, and interlocks; manual lowering (in-line unit), instantaneous safety brake system, elevator door interlocks, emergency stop switch, slack chain brake system.
• Warranty: 2 years standard, with best-in-industry optional 5-year extended warranty for a total of 7 years of coverage.

Tech Specs

Applications: Residential, indoors
Standard capacity: 750 lb -1000 lb
Maximum travel distance: 50' with up to 8 stops (in-line unit); 42' 6" with up to 6 stops (hydraulic unit)
Nominal speed: 40 ft/min (0.20 m/s)
Hydraulic drive system: 1:2 cable hydraulic drive with 3hp submersed hydraulic pump motor
In-line drive system: 2hp submersed in-line drive electric motor
Minimum pit: 8" recommended
Minimum overhead clearance: 96" (84" cab height); 108" (96" cab height)
Power supply: 230 VAC Single phase 30 amps (hydraulic unit); 230 VAC Single phase 15 amps 60/50 Hz (in-line unit)

Download Garaventa Planning Guide

Options

Endless Options to Meet Your Needs

Your local Lifeway Mobility elevator consultant can show you the extensive options available from Garaventa to create the perfect elevator to match your home's decor. Additionally, visit Garaventa's online elevator design feature to get started on your own ideas.

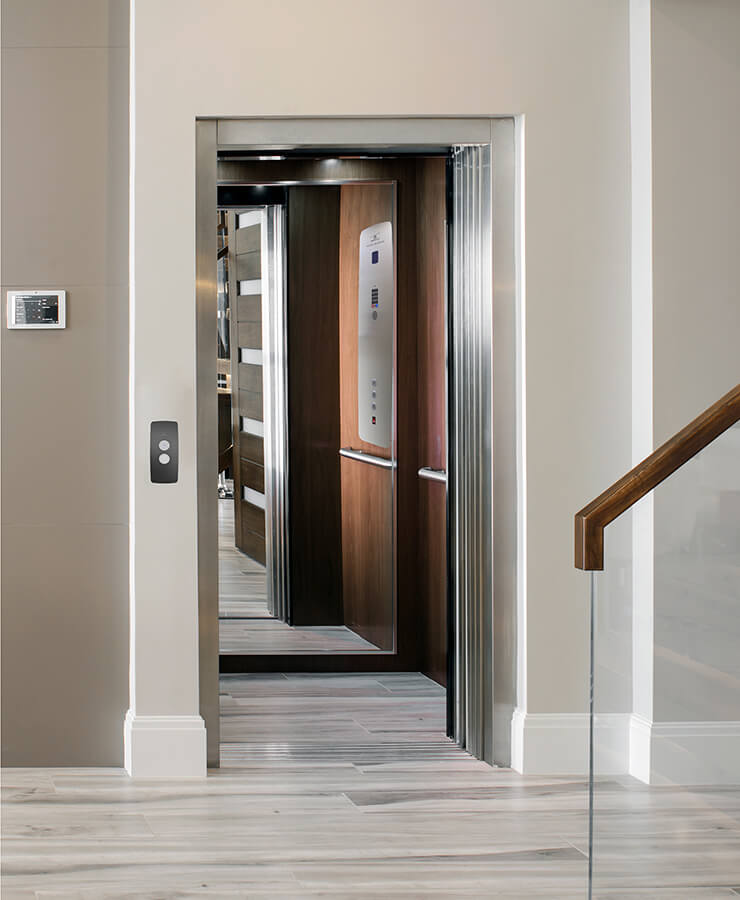

• Optional Cab Finishes: Cabs can be completely custom outfitted with a variety of materials including exotic woods, steel, glass, and other materials.
• Optional Fixture Finishes: Black and white glass panels available for call stations and operating panels; polished brass finish, oil-rubbed bronze, polished stainless steel, blackened stainless steel, or premium white (handrail, cab operating panel, hall call station).
• Play Garaventa Elvoron Home Elevator Video
  Doors and Gate Options:
  • Swinging hall door and accordion car gate (standard). Automatic cab gate and power door operator available as an upgrade
  • Swinging hall doors with 3-speed side sliding elevator car door (upgrade).
  • Luxury flush frame doors available (see video)
  • Sliding elevator car doors with tandem sliding elevator hall doors (premium). This option is available with both 84” and 96" height cabs

• Cab Sizes
  • • W36” x L48” x H84”
    • W36” x L54” x H84”
    • W36” x L60” x H84”
    • W40" x L50" x H84"
    • W40” x L54” x H84”
  • Optional Sizes Available: Custom height available anywhere between 80"-96"; larger cab sizes available
• Other Options: Up to 8 stops (in-line unit), machine room less controller in the hoistway, telephone cabinet, alpha-numeric button marking, two-exit opening, buffer springs, keyed hall call station.
