Inclined Platform Lifts

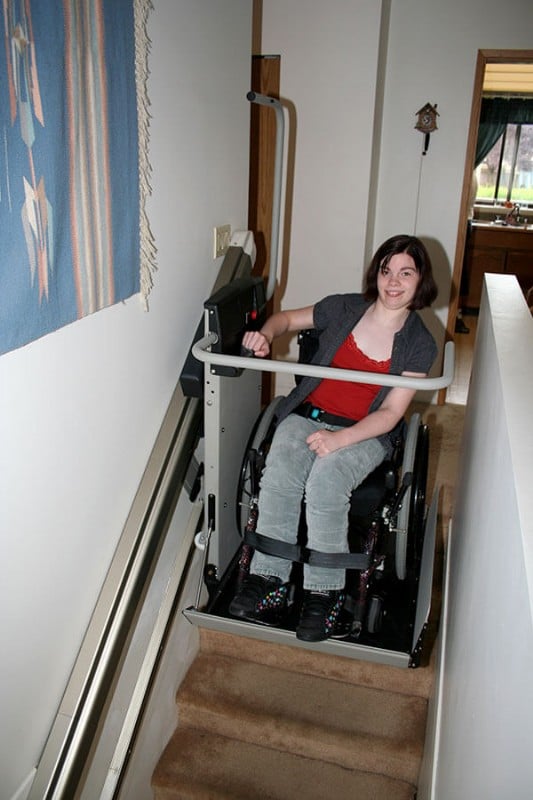

Garaventa X3 Inclined Platform Lift
The Garaventa X3 Inclined Platform Lift is an economical lifting solution for any stairway application. With its minimal space requirements, concealed drive motor, and narrow profile when folded, the Garaventa X3 is always there when needed, and safely out of the way when it isn't.
The Garaventa X3 inclined platform lift is a durable and reliable wheelchair lift that requires no structural modifications for installation. Perfect for adding as an accessibility improvement to historic buildings and other sites where keeping structural impact to a minimum is a concern. The Garaventa X3 is ADA-compliant and suitable for any indoor or outdoor usage in both residential and commercial settings.
Features
- 550 lb lifting capacity
- Travel angle up to 45º
- 120 VAC provides power to battery charger
- Lift folds away when not in use
- No machine room needed
- Mounts directly to wall or attaches to stair treads.
- Manual (residential) or fully automatic (commercial) curved safety arms
- Standard finishes: Silver Moon painted extruded aluminum. The non-aluminum components of the lift are finished in a durable polyester powder paint coating Optional RAL colors available.
- ADA-compliant system.
- Safety features: Under-platform obstruction sensors, Pedestrian Safety Lights, bi-directional ramp obstruction sensors, emergency manual folding and lowering, curved safety barrier arms.
Options
- Attendant remote control
- Fully automatic platform with powered ramps and arms
- Side load ramp, allowing for easier boarding in small lower landing spaces
- Fold-down seat and seatbelt
- Keyed controls to prevent unauthorized usage
- On-board alarm with illuminated E-stop button
