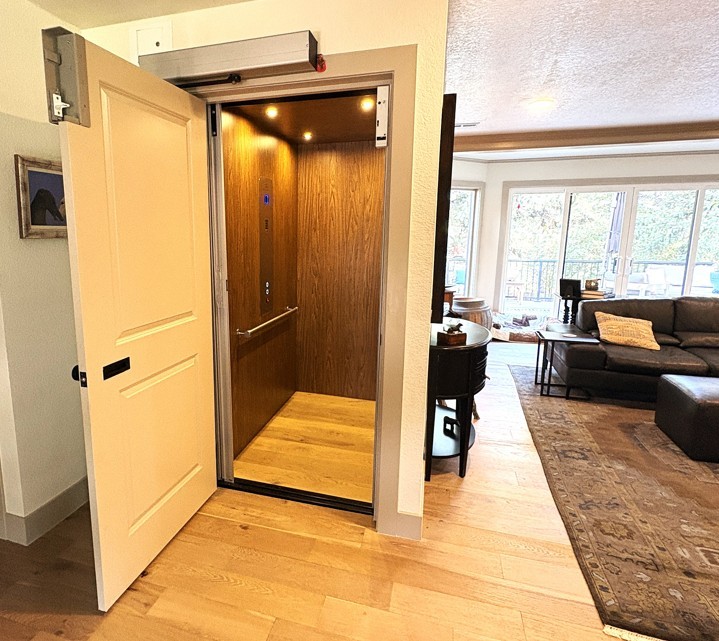

Inclinator Elevette Home Elevator
Inclinator has been bringing all-American craftsmanship and engineering to the home elevator market for over 100 years. With a variety of custom features, cab sizes, finishes, and appointments, the Inclinator Elevette home elevator will upgrade any home with style and luxury.
For more than 100 years, Inclinator has been building American elevators in their Pennsylvania factory; bringing style and convenience to American homes across the nation. Each Inclinator elevator is skillfully crafted and handmade. The Inclinator Elevette is available in a nearly endless array of finishes, cab styles, and features to match any home's decor and layout.
The Inclinator Elevette is available in three drive configurations:
- Cable Drum Drive
The Inclinator cable drum drive system has a monorail guide that moves the elevator up to six landings and 50 vertical feet. It can accommodate a small cab size of up to 12 sq. ft. or a larger cab up to 15 sq. ft. And has a capacity of up to 1,000 lb. - Hydraulic Drive
A hydraulic drive system from Inclinator offers a smooth and quiet ride. The Inclinator HydraRide system uses less hydraulic fluid than other models on the market, making it an economical choice. This hydraulic drive system has a capacity of up to 1,000 lb. and 15 sq. ft. cab size, and can accommodate up to six landings. - MRL Overhead Cable Drum Drive
MRL, or "machine roomless," overhead cable drum systems operate above the cab in the shaftway. Instead of requiring a machine room, it uses overhead space, making it more suitable for situations where a machine room is not practical. The MRL overhead cable drum systems can travel up to 40 vertical feet, works with up to six landings, and has a capacity of up to 1,000 lb.
Features
- Machine roomless option: The Elevette MRL Overhead Cable Drum Drive configuration allows for the machinery to be mounted at the top of the hoistway, instead of in a separate room.
- Standard Finishes: White MDF panels that can be painted to match any style or decor. Standard Cab style 100 includes: laminate flooring, wooden handrails, and recessed LED ceiling lights.
- Multiple Gate and Door Options: Scissor style or accordion style gates available in a variety of metal or acrylic finishes. Automatic door and gate openers available.

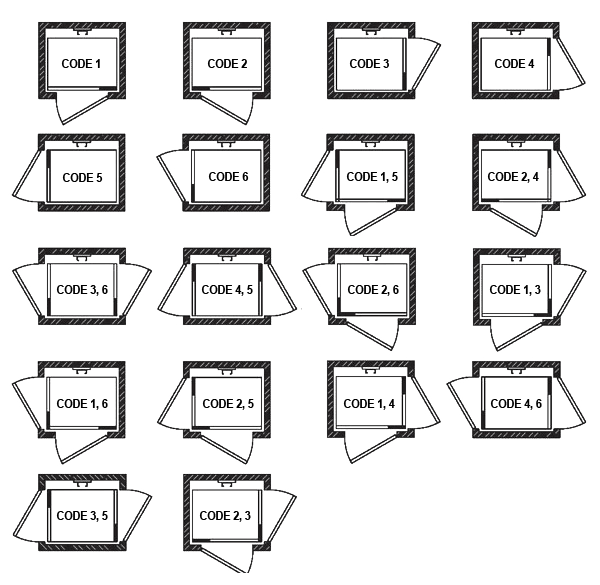

- Cab Configurations: Entry/exit options for any layout or requirement. Most in the industry with18 different configurations.
Tech Specs
Applications: Residential, indoors
Standard capacity: 500 lb -1000 lb
Maximum travel distance: 50' (40' MRL Overhead Unit) with up to 6 stops
Minimum pit: 6" (Cable Drive unit) 10" (Hydraulic unit) 8" (MRL Overhead unit)
Travel speed: Up to 40 fpm
Emergency battery-powered lowering: yes
Standard features: Emergency light and bell, digital landing position indicator, overrun switch and call/send feature
Exterior features: Water-resistant hall station available
Cab finishes: 8 different wood grains; custom color laminate available
Options
Custom finishes to match your home's decor
Inclinator offers a huge variety of custom finishes and textures in order to create a seamless elevator installation in your home.
- Optional Cab Finishes: Cabs can be completely custom outfitted with a variety of materials including a variety of woods, aluminum, glass, and other materials.
- Optional Fixture Finishes: Brushed stainless, brushed brass, and oil-rubbed bronze finishes available.
- Doors and Gate Options:
- Accordion-style gates
- Scissor-style gates
- Automatic door and gate operators available
