Commercial Vertical Platform Lifts

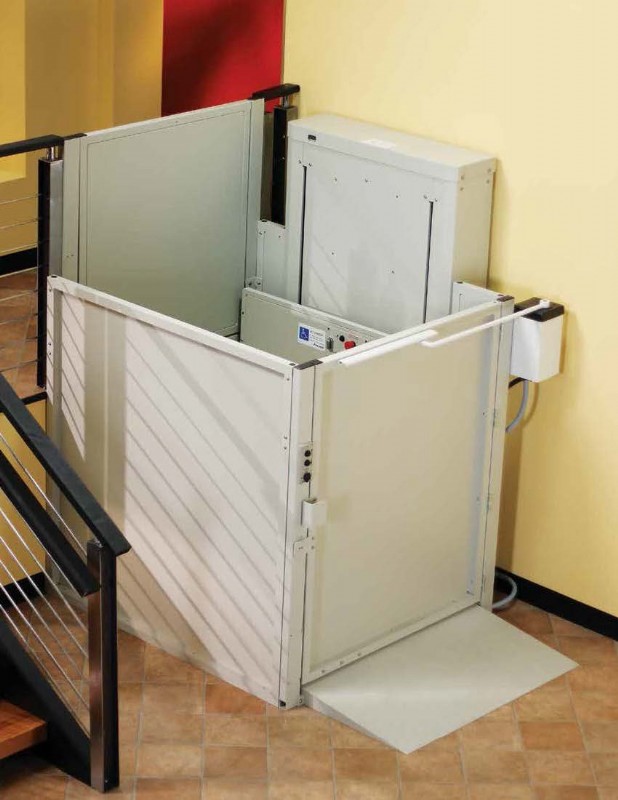

Bruno 3-Gate Vertical Platform Lift

The Bruno commercial vertical platform lift 3-gate (toe guard) lower enclosure system provides a full barrier at the lower landing with no access under the lift for maximum safety. Like all Bruno vertical platform lifts (VPLs), the 3-gate is driven by a reliable, quiet ACME screw-driven DC motor with full-time battery operation for access even during power outages. This is an ideal accessibility solution for wheelchair and scooter users.

Features

  • The 3-gate (toe guard) lower enclosure system provides a full barrier at the lower landing with no access under the lift for maximum safety.
  • Weather-protected controls on platform; emergency
  • Automatic folding ramp (unenclosed unit only)
  • Quiet, smooth ride
  • Keyed, constant pressure controls on platform with emergency stop switch and audio/visual alarm
  • Bottom platform safety panel
  • Top & bottom limit switches
  • Top and bottom final limit safety switch
  • Fixed Ramp (enclosed and 3-gate)
  • Gold Warranty: Two years on major components; one year on parts

Download Brochure

Tech Specs

  • Lifting capacity: 750 lb.
  • Lift height: Provides access up to 14'
  • Platform size: 36″ x 48″ non-skid platform
  • Platform wall height: 42″ high, solid, side platform walls
  • Power Systems – Models VPL-3353B & VPL-3375B ½ hp DC motor (includes 17AH batteries)
  • Reliable, quiet ACME screw-driven DC motor with full-time battery operation offers access even in a power outage

Options

  • Top landing gate includes call/send controls with key and mechanical or electrical interlock
  • Cold Weather Package, recommended if operating in temps below -20º F
  • Several platform sizes and configurations
  • Push button or Paddle Controls on the platform
  • Push button or Paddle Landing Controls
  • Flush mount doors with interlock
  • Power assisted door/gate operator
  • ADA compliant telephone kit
  • Plexiglass panels: clear or bronze
  • Secondary grab rail
