Material Lifts

Material Lifts

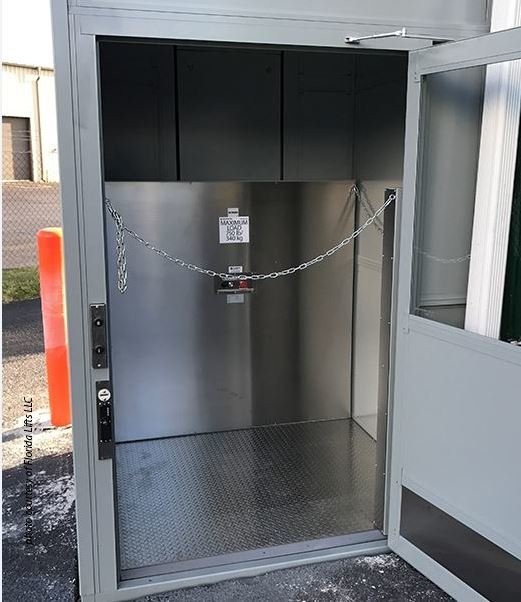

A material lift is intended for use inside a shaft way and can be ordered in a choice of standard or custom sized platforms. Landing stations control this freight-only hydraulic lift. There are no controls on the platform. Easier to install than a typical dumbwaiter, a material lift might be the most affordable way to keep your material moving! They are ideal for commercial buildings such as restaurants, banquet halls, retail stores, etc.

The Savaria M-1504 Material Lift is used to carry freight up to 1000 lbs. and travels up to 23 feet with four stops. It has a 60-inch 5WL stainless steel side guards and diamond plate stainless steel flooring, which makes the lift built for durability.


  • 1000 lb. weight capacity – ideal for moving freight such as boxes, wheeled carts, kegs and more
  • 60 in. 5WL stainless steel side guards & diamond plate aluminum flooring for long durability
  • No machine room is required, making it more space efficient to install than a typical dumbwaiter
  • Landing control stations at each landing for convenient use
  • Automatic battery back-up lowering system for safety in case of a power failure
  • Back-up lowering system
  • Safety Features:
    • Integrated landing doors with interlocks for safe operation
    • Door locks

Standard Cab Sizes Available

  • Standard height of cab walls: 60" (1524 mm)
  • Optional height of cab walls: 80" (2031 mm)
  • 36″ x 54″ (914 mm x 1371 mm)
  • 42″ x 60″ (1067 mm x 1524 mm)
  • 48″ x 60″ (1219 mm x 1524 mm)

Cab Access Options

  • Straight through
  • On/off same side (In-line)
  • 90 degree adjacent

Other Options

  • Custom color
  • Fixed access ramp
  • Outdoor package
  • 24V battery backup
  • Remote controller/pump box
  • Automatic standard operation
